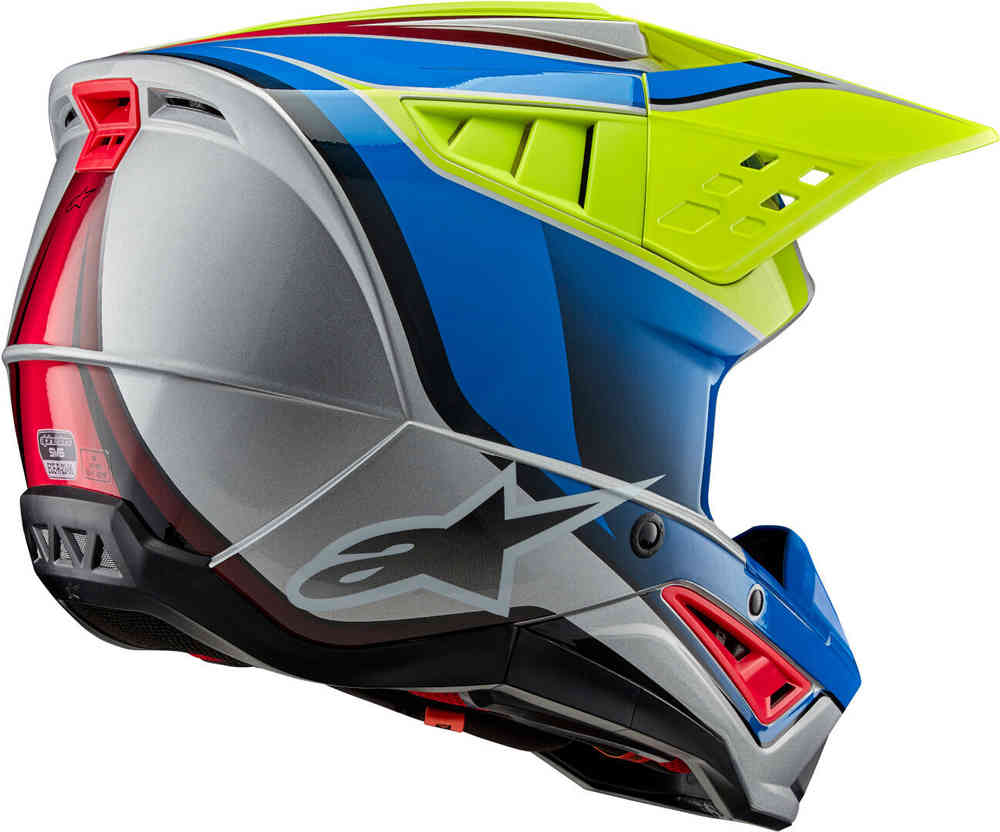

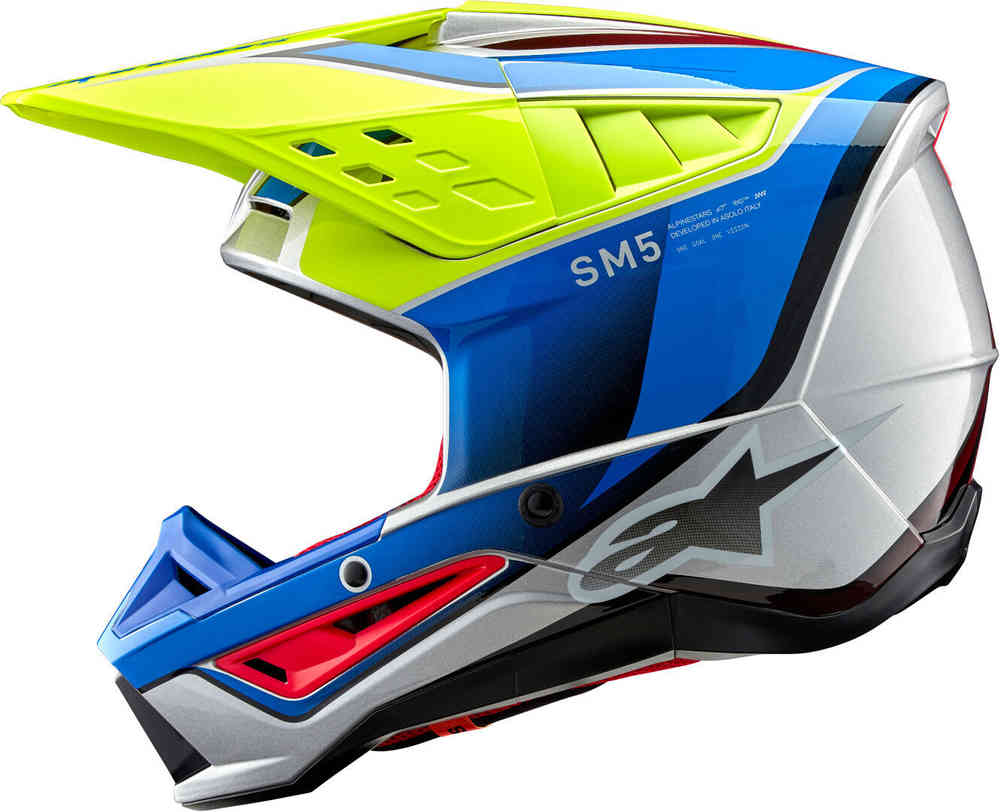

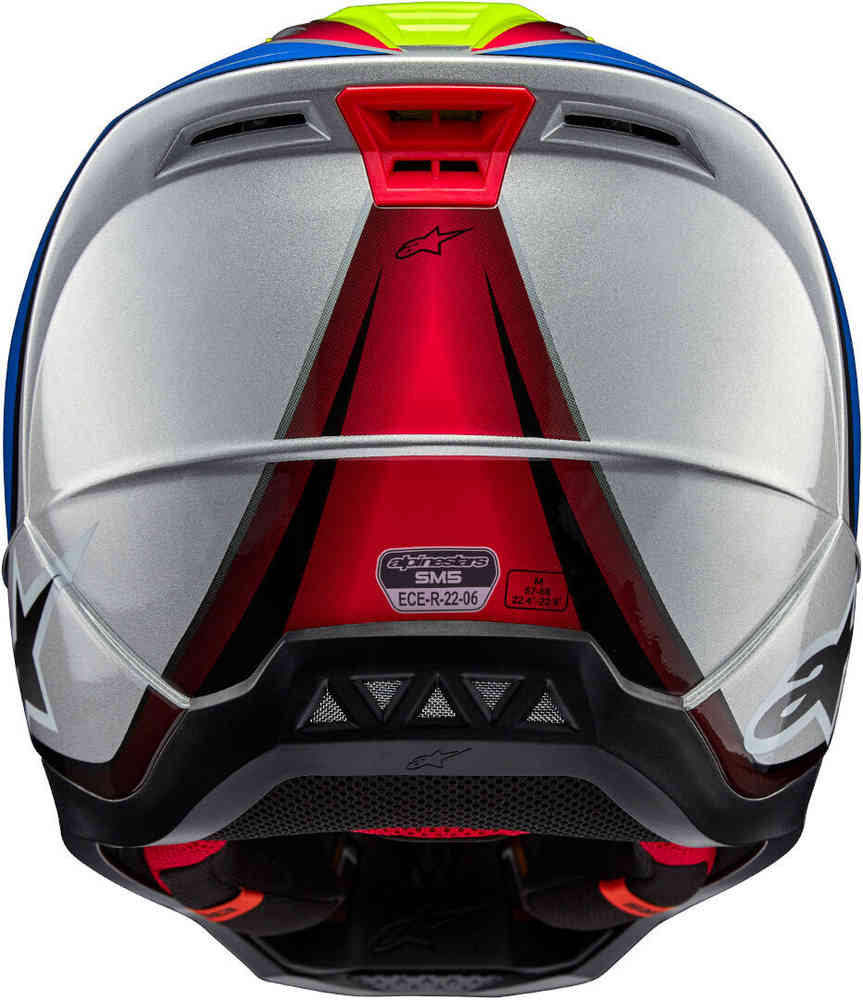

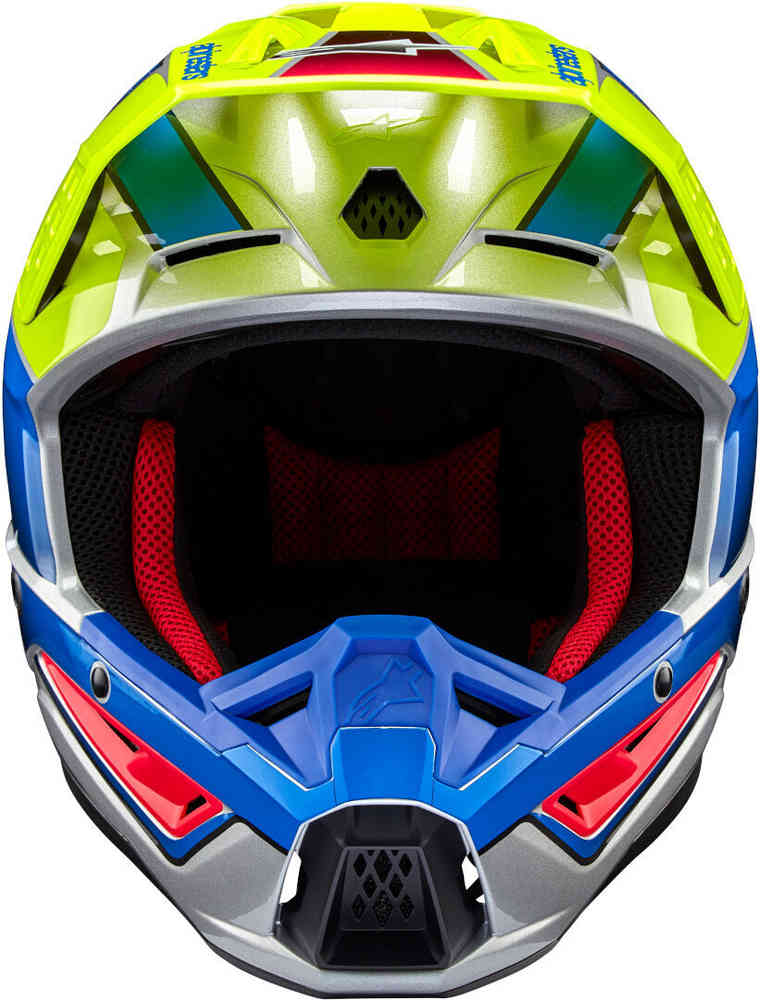

Alpinestars S-M5 Sail 2024 Motocross Helmet
The all-new SM5 ECE 22.06 Helmet has been designed to provide MX riders with a helmet that is safe and purposefully designed to deliver optimal protection and comfort. The lightweight SM5 Helmet features a thermo-injected shell incorporating a special polymer blend enhanced by varying degrees of thickness that is engineered to deliver the optimal combination of impact protection and light weight. The inner liner features a 7-piece expanded polystyrene (EPS) construction including five different densities of EPS designed to ensure the correct density in the correct area for enhanced impact absorption.
Features:
-
Lightweight outer shell is constructed from a technologically advanced impact resistant thermoplastic in three anatomical shell sizes, plus three individual EPS inner liner sizes with a combination of inner lining and cheek padding to offer 6 unique sizes and to ensure the best fitment and protection
-
An engineered raised area with padding effectively reduces the forces transmitted to the collarbone and a patented helmet peak release system that ensures the helmet peak is released with the correct pre-determined amount of force, irrespective of the angle of impact
-
Revised the medium, large, XL, and 2XL lower shell volume to be around 3% wider to make the helmet easier to put on and take off, where the increase in helmet volume has also improved the impact management performance which is now 44% lower than the regular-speed threshold
-
For the new ECE 22.06 standard, the SM5 achieves a 44% better regular-speed impact rating compared to the current 33% figure, as well as a 32% better low-speed, and 31% better high-speed linear impact score than the prevailing standard
-
The inner and outer surfaces are engineered to minimize the effects of oblique impacts. To help fight and mitigate those rotational impact forces, Alpinestars has designed a proprietary technology by creating a low friction surface on the inner surface of the EPS liner. For the ECE 22.06 standard, which now includes the rotational oblique impact rating, the SM5 scores 70% under the new regulation
-
Multiple density inner liner to ensure the correct density in the correct area for enhanced impact absorption
-
Redesigned chin bar’s new profile, where the base area has been specifically sculpted to give a relief section, raised to clear the collarbone, with a new softer EPS liner which extends beyond the helmet shell itself, and is covered by a more flexible rubber compound providing a reduced chance of any sort of collarbone injury
-
Maximized ventilation and high levels of heat transfer exchange thanks to multi-air inlets and exhaust ports
-
The helmet peak has been designed to direct air into the ports for enhanced airflow
-
ERS Emergency Release System cheek pads
-
Hydration hose routing loops to facilitate hydration system mounting
Specifications:
-
The ECE version of the SM5 Helmet weighs 1,350 grams for a size medium with helmet peak
-
ECE 22-06
-
Double D-Ring closure
